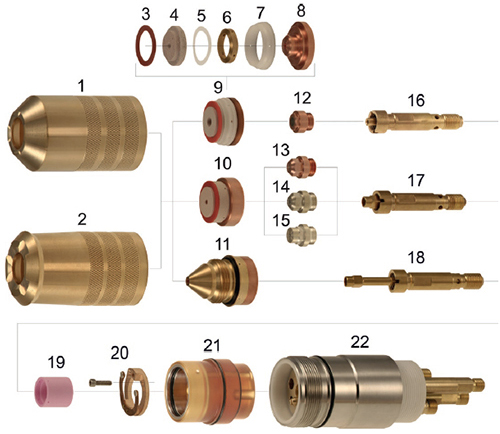

PT-15XL®

№	Артикул OEM	Описание
1	20758	Nozzle Retaining Cup, О₂
2	20759	Nozzle Retaining Cup, N₂/H₃₅
NS	996230	Retaining Cup
3	996628	Gasket
4	2075693	Insulator, 0,140"
	2075617	Insulator, 0,180"
	2075606	Insulator, 0,225"
	2075607	Insulator, 0,260"
	2075588	Insulator, 0,500"
NS	20409-UR	Insulator
5	996619	Spacer
6	2075616	Swirl Ring
	2075584	Swirl Ring, 4Hole, Std.
7	996618	Nozzle Retaining Cup, N₂/H₃₅
8	19810	Nozzle Base 875- 1000A
	2075608	Nozzle Base 400A
	2075609	Nozzle Base 600A
	2075610	Nozzle Base 750A
9	2075611	Nozzle 400A, N₂
	2075612	Nozzle 600A, N₂
	2075613	Nozzle 750A, N₂
	2075614	Nozzle 400A, N₂, CCW
	2075615	Nozzle 600A, N₂, CCW
	2075691	Nozzle 250A, Std.
	2075692	Nozzle 250A, CCW
	20751-UR	Nozzle 260A, O₂
	2075587	Nozzle 875-1000A, H₃₅
	2075691	Nozzle 250A, N₂
	2075611-2	Nozzle 400A, N₂
10	35664	Nozzle 340А, О₂
	20751	Nozzle 260A, О₂
	20920	Nozzle 260A, O₂, CCW
	20920-UR	Nozzle 260A, О₂, CCW
	35662	Nozzle 300A, O₂
11	21962	Nozzle Bevel 300A, О₂
	21963	Nozzle 260-300A, CCW
12	600236	Electrode 250-1000A , N₂
13	20763	Electrode 260A, O₂
14	20763-AG	Electrode 260A, O₂, SilverEX-
15	35666XL-AG	Electrode 125-34QA, O₂, SilverEX-
16	2075343	Electrode Holder
17	20398	Electrode Holder
18	34084	Electrode Holder
19	2075341	SwiH Ring, 4 Hole
	948142	SwiH Ring, 4 Hole, Std.
	1361201	SwiH Ring, 8 Hole
	948143	SwiH Ring, 4 Hole CCW
	35660	SwiH Ring, 8 Hole, Std.
	35661	SwiH Ring, 8 Hole CCW
	2075360	SwiH Ring, 4 Hole, N₂
	2075586	SwiH Ring, 8 Hole CCW
20	21940 OEM	Contact Ring
21	20755	Insulator
NS	20403	Wire Insulator
22	20754	Torch Body, Machine
NS	20408-UR	H.F. Connector
NS	17504-UR	Adaptor, Water-Out
NS	17501-UR	Adaptor, Water Injection
NS	17503-UR	Adaptor, Water-In
